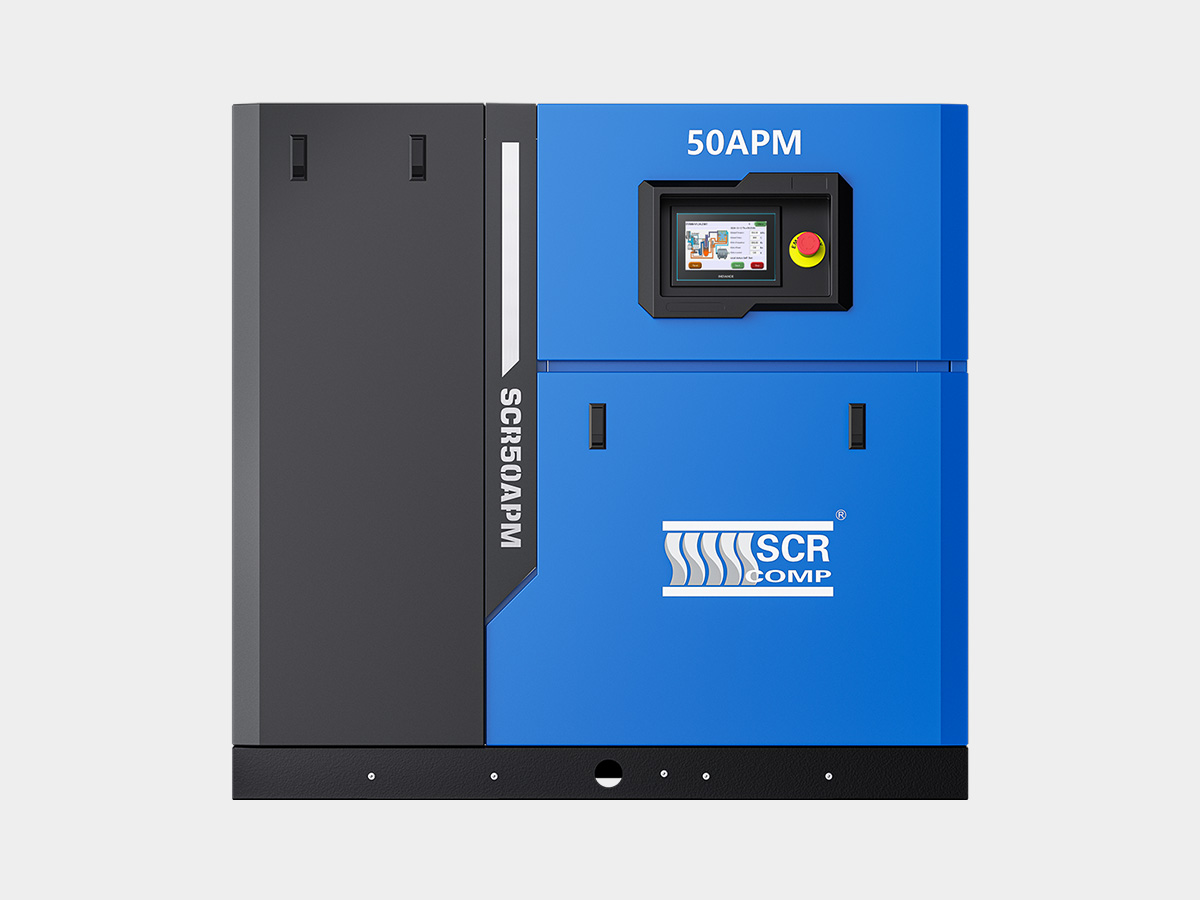

APM series

_____________________________________________

Working Power: 7.5~75KW(10~100HP)
Free Air Delivery: 0.41~12.2m³/min
Working Pressure: 7/8/10/12.5/15/16bar

PRODUCT ADVANTAGE

1. Super Premium Efficiency APM Motor (IE4 equivalent)

• ● Oil-cooled motor.
• ● Fully enclosed lP65 protection.
• ● Reach lE4 efficiency standard.
• ● VSD: variable speed drive.
• ● Optimal cooling for all speeds and ambient conditions.
• ● Bearing free motor requires zero maintenance.
• ● UH series Permanent magnets resist to 180°℃
• ● F grade insulation and B grade temperature rise assessment.
• ● High temperature design prevents demagnetization.

2. What you pay should be only for what you use

SCR compressor can adjust compressor's rotating speed depends on the demand of factory load which changes from moment to moment by own developed algorithm. Thus, it can provide exact volume and pressure what customer needs and achieve maximum energy saving.

Achieve an energy-saving effect under any load operation through wide-range inverter control, wide-range control, and e-STOP function.

3. Special Dual Housing Oil Cooling Motor

Permanent Magnet motor adopt dual housing design with IP65 protection grade, there have space left for oil channel between the inner housing and outer housing. It take use of compressor itself lubricant system to cool down motor circularly through its oil channel, no touch with outside cooling air, and more suitable for the dusty environment,  It break through the traditional air cooling motor disadvantage with IP23 or IP54 protection grade.

4. Special morse connection

PM motor rotor is directly mounted on the airend shaft, No gears or belts, no coupling, Zero transmission loss, Easy for installation, No need to make adjustment, Better protection for inner parts of PM motor. There's no bearing for the PM motor, so motor is 100% free maintenance, Reduce maintenance cost.

5. Double Frequency conversion system

Constant pressure output:
A significant energy-saving effect can be achieved by constant pressure control Pressure fluctuation can be controlled within士0.01MPa.

Constant temperature output:
Normally the temperature is set at 81℃,ensure the best lubrication performances while avoid the sudden stop caused by haigh temperature.

SCR oil-cooled permanent magnetall in one compressor

High quality reliable dryerThe high heat exchange efficiency design of the inlet and outlet temperature difference of 5 ℃ reduces the demand of cooling capacity to a low level and achieves a high energy efficiency ratio.The stainless plate heat exchanger is used to prevent the dryer itself from becoming a source of pollution and to achieve high quality compressed air.Efficient heat transfer capacity and the use of environmentally friendly refrigerant R134a makes it especially be suitable for high temperature and high humidity environment.High-efficiency (99.9%) air-water separation structure is combined with a highly reliable automatic drainage device, to ensure that the condensate water was drained from the compressed air system timely and ef ficiently. Ultra-quiet refrigeration compressor,high reliability and long service life.The wind condenser uses nano anti-corrosion coating to improve heat-transfer performance.
